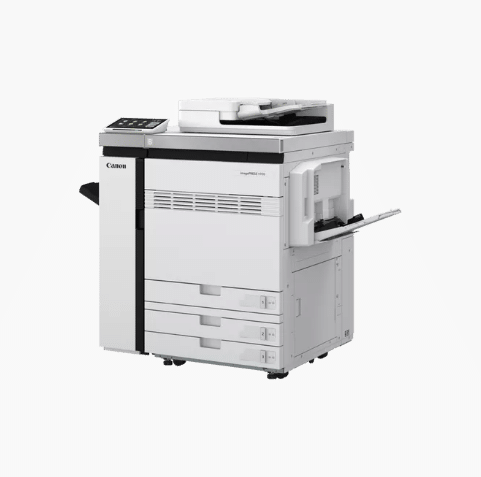

Canon imagePRESS V900
Production Press
Compact & Reliable Colour Press With Innovative Technologies
The Canon imagePRESS V900 is a reliable digital printing press designed for the vast requirements of print service providers. The Canon V900 uses automation technologies, such as the in-line spectrometric sensor to adjust colours, from RGB to CMYK and CMYK to RGB. In addition, the Canon V900 can help you maximise your efficiency, reduce manual labour, and save time and consumable costs, with duplex printing and semi-automatic ADF scanning. Furthermore, its easy maintenance maximises uptime, as toner and paper can be replaced during printing. Ensuring high-quality prints across a wide range of media applications.
90
Pages per minute
2400 x 2400
Dpi
52 – 350
Gsm
330 x 1300 mm
Paper size
| Print/Copy Process | This press employs Colour Laser Bean Printing technology with a print resolution of 2400 x 2400 dpi and a copy resolution of 600 x 600 dpi. It creates high-quality prints with sharp and detailed outputs. Handling a wide range of media, including envelopes, business cards, thin-coated paper, and luxury textured paper. Equipped with technologies like in-line spectrophotometric sensor, to automatically adjust colour and the ability to replace toner and paper during printing, to maximise uptime. This press will also save time and consumable costs with duplex printing and semi-automatic ADF scanning. |
|---|---|
| Output Speed | (B&W and Full-colour): 90 ppm. |
| Paper Capacity | Standard paper supply capacity of 1,650 sheets, with 3 cassettes that hold 550 sheets each. Maximum 10,400 sheets of paper capacity with options. The Bypass tray holds up to 250 sheets. Supports media sizes of A3S to some custom sizes. |
| Paper Weight | Paper weight 52 – 350 gsm. |
| Power Requirements | 220-240V 50/60Hz 13A+13A |
| Dimensions W x D x H |
Dimensions of the main engine 1,327mm* x 872mm x 1,185mm** * Includes an optional Control panel and Copy Tray-R2 ** Includes Operation Panel-A1 Reader-P1 (If Operating Panel-A5 and Operator Attention Light-A1 are attached, the total height is 1,632mm). |
| Weight | Approx. 284kg (including ADF). |
Paper Handling and Input Trays
Standard Paper Trays: This device can come with three paper trays, each capable of holding up to 550 sheets. This engine drawer can support media types of thin(52-63gsm), plain(64-105gsm), thick(106-300gsm), recycled, colour, tab, transparency, bond, pre-punched, letterhead, postcard, and envelope.
Multi Drawer Deck: Can hold 1,500 + 1,500 + 2,000 sheets. Upper/ middle supports media types of thin(52-63gsm), plain(64-105gsm), recycled, colour, thick(106-350gsm), coated(70-350gsm), embossed, bond, transparency, label, pre-punched, letterhead, index, bellum, transparent film, translucent film, envelope*. Lower support media types of thin(52-63gsm), plain(64-105gsm), recycled, colour, thick(106-350gsm), coated(70-350gsm), embossed, bond, transparency, label, pre-punched, letterhead, index, transparent film, translucent film, envelope*, synthetic, magnetic (TBD).
POD Deck Lite: Supports different media types such as thin(52-63gsm), plain(64-105gsm), recycled, colour, thick(106-350gsm), coated(85-350gsm), embossed, transparent film, translucent film, label, pre-punched, letterhead, index, postcard, envelope, and synthetic.
POD Deck Lite XL: Can hold 3,500. Supports media types with a length of 19.2” or shorter, thin (52-63 gsm), plain (64-105 gsm), recycled, colour, thick (106-350gsm*), coated (85-359 gsm), embossed, transparent film, translucent film, label, pre-punched, letterhead, index, postcard, envelope, and synthetic.
Bypass Tray: The device is equipped with a bypass tray that can handle up to 250 sheets, adding to the input options.
Multi-Purpose Tray: Can support media types of thin(52-63gsm), plain(64-105gsm), recycled, thick(106-350gsm), colour, transparency, label, postcard, envelope, coated(70-350gsm), embossed, bond, pre-punched, letterhead, vellum, tab.
Finishing and Binding Options
Multi-Punching: Various hole punch options are available, including a 2/4 Hole Puncher, a 4 Hole Puncher, and a Puncher Unit for different finishing configurations.
Stacking: Stacking options are available for efficient handling of print materials.
Perfect Binding: Perfect binding is available, with the ability to glue and cut stacks of paper. Depending on the cover and body pages/ slip sheets, this machine can use the following types of paper: thin, plain, heavy, recycled, coloured, coated, textured, bond paper, and the following paper weight: 14lb bond to 90lb index (52 to 163 g/m2) and 25lb bond to 110lb cover (91 to 300 g/m2).
Controllers
Fiery Print Controller imagePRESS Server N500/P400: The imagePRESS Server N500 is an external digital front end (DFE), while the imagePRESS Server P400 is an embedded DFE. These controllers can quickly help operators modify routine job properties. Both offer features that can help boost colour, and image quality, increasing productivity and optimising production.
Prisma Synccontroller PRISMAsync for iPR V900 series: The PRISMAsync for iPR can boost production capacity and lower costs. Designed to deliver high performance and meet deadlines.
Enhance your Canon imagePRESS V900 Production Press with these configuration options to meet your specific paper handling, finishing, and binding needs. Customise your printing capabilities to match your unique requirements and deliver exceptional results.
Packaging
The Canon imagePRESS V900 is a versatile production press that can handle a variety of applications. Including packaging prototypes or short-run packaging materials, due to the machine’s accurate colour reproduction. As well as other print collateral:
Commercial Printing
This device is well-suited for commercial printing as it can handle a wide variety of media types and can automatically adjust colour, alternating between CMYK and RGB.
Direct Mail
Create personalised and targeted direct mail campaigns with high-resolution graphics and text. Whether you’re printing postcards, flyers, or other direct mail formats, the printer’s versatility allows you to handle various sizes and types of materials for your campaigns.
Photo Printing
Achieve high-quality photo prints suitable for various applications, including event photography and professional photo albums.
Event Collateral
High-speed printing allows for efficient production of event collateral, such as flyers, brochures, and promotional materials. This capability is crucial for meeting tight deadlines associated with event preparations.
Marketing Materials
It produces sharp text, vibrant colours, and fine details, ensuring that your marketing materials look visually appealing and reflect a high standard of quality. Allowing you to produce brochures, flyers, and other promotional materials with detailed prints.
Fine Art Printing
Well-suited for fine art printing, delivering exceptional colour accuracy and detail. Whether it’s reproducing artwork, photographs, or illustrations, the printer’s advanced features ensure that the final prints capture the intricacies and nuances of the original pieces.
Business Documents
Designed for high-speed production, allowing for quick and efficient printing of business documents. This is crucial for businesses with high-volume printing needs, ensuring timely delivery of essential documents.
Book Printing and Publishing
Suitable for book publishing where sharp text, vibrant images, and consistent colour reproduction are essential. Offering professional-quality output for books and manuals.
Perfect Binder
Perfect Binder-F1
This binder supports various binding styles, including perfect binding, which is ideal for creating paperback books, manuals, catalogues, and other bound documents. (Requires either the Staple Finisher-AG1 or Booklet Finisher-AG1). Supports booklet size: 203 x 138 mm to 297 x 216 mm| booklet thickness: up to 25mm.| Cutting range: top/bottom: 6.5 to 39.5mm at each edge, fore-edge: 6.5 to 49.5mm.| Body pages: Sizes – A4, SRA4, Free size (257 x 182 mm to 320 x 228.6 mm). Paper weight and number of sheets: thin paper (52-63 gsm): 30-200 sheets, plain paper (64-80 gsm): 10-200 sheets, plain paper (81-90 gsm): 10-150 sheets, thick paper (91-105 gsm): 10-150 sheets, thick paper (106-163 gsm): up to 10 sheets as insertion sheet or up to 25mm as thickness of bunch.| Cover: number of sheets – 1 sheet. Sizes: A3, SRA3, Free size (257 x 364 mm to 330.2 x 487.7mm). Paper weight: 90 to 300 gsm. Tray capacity: approx.127mm or approx.1,000 sheets of paper in total.| Weight approx. 308kg. Power: 220-240V, 50/60Hz, 3.0A.
Paper Handling
Document Insertion Unit-R1
This automates the process of inserting documents, such as reply cards, subscription forms, or promotional materials, into finished booklets or other printed materials. Allowing for efficient and accurate document insertion without the need for manual intervention. (Requires either the Staple Finisher-AG1 or Booklet Finisher-AG1). Number of trays: 2| Tray capacity: upper tray: 200 Sheets (80 gsm)| lower tray: 200 Sheets (80 gsm). Suitable for paper types: thin, plain, recycled, colour, thick, pre-punched, letterhead, bond, coated, tab, tracing, and textured. Supports paper sizes: SRA3, A3, A4, A4R, B4, B5, B5R, and custom size (182.0 × 182.0 mm to 330.2 × 487.7 mm). Supports paper weight between 52 to 300 gsm. Weight: Approx. 61 kg. Power Source: 100-240V/50/60Hz 1.0A.
Finisher Jogger Kit-A1
The jogging functionality helps align and square up the edges of printed documents. By gently vibrating the paper stack, it eliminates air pockets and aligns the edges, ensuring neat and uniform output. (Requires either Staple or Booklet Finisher-AC1). Paper Weight: Non Sort 52-300 gsm| Bunch Shift 52-256 gsm.| Paper Size: Non Sort A3/A4/A4R, Bunch Shift A3/A4/A4R.
DFD Adapter-A3
Enables Dual Feed Detection (DFD) connectivity directly beside the engine. Detecting and preventing double feeding of sheets during the printing process.
Stackers
Copy Tray-R2
This is a dedicated space for neatly stacking printed documents as they exit the printer. Supports paper weight between 52 to 350 gsm. Output Capacity: 250 sheets at simplex/duplex printing, 100 sheets at length over 487.7 mm (Long Sheet Tray is required). Weight: Approx. 1.2 kg.
High Capacity Stacker-J1
Capable of stacking a large volume of printed documents, allowing users to accommodate high-volume printing jobs without the need for frequent unloading. Supports paper sizes between A5R to SRA3 to Free Size (140 x 182 mm to 330.2 x 1,300 mm).| Supports paper weight between 52 to 350 gsm.| Output Capacity – stack tray: 6,000 sheets (80 gsm) in two stacks of 3,000 sheets each, top tray: 200 sheets up to 487.7mm (100 sheets up to 762mm; 10 sheets up to 1300mm).| Weight: approx. 120 kg. Power: 90-264V, 47-63Hz, 10A.
Booklet Makers
Booklet Finisher-AC1
This booklet finisher enables the automatic creation of booklets from printed sheets. It can fold, staple, and trim the pages to produce professional-looking booklets efficiently.
Booklet Finisher-AF1
This finisher allows for the automatic creation of booklets from printed sheets. It can fold, saddle-stitch, and trim the pages to produce professional-looking booklets.
Cutters/ Trimmers/ Folders
Booklet Trimmer-G1
It has advanced trimming technology to deliver precise and professional-quality trimming for booklets and other multi-page documents. It ensures clean, straight edges on each page, enhancing the overall appearance and readability of the finished product. (Requires Booklet Finisher-AG1). Trim Width: 2-28mm. Trim Thickness: up to 50 sheets (including cover). Supports paper weight between 52 to 300 gsm. Chip tray capacity: approx. 5,000 sheets (trim width 20mm, A4, 80 gsm). Weight: Approx. 178 kg (including conveyor and output tray).
Two-Knife Booklet Trimmer-B1 and Two-Knife Booklet Trimmer Conveyor-B1
Dual-knife trimming technology enables the trimming of booklets with precision and accuracy. This trimmer can trim both the head and foot edges of the booklet in a single pass. The Conveyor provides a direct connection between the trimmer and subsequent finishing equipment, automatically transferring the trimmed booklets for further processing. (Requires Booklet Trimmer-G1). Trim Width: 2-15 mm. Trim Thickness: up to 50 sheets (including cover). Supports paper weight between 52 to 300 gsm (trim 60 to 300 gsm). Chip tray capacity: approx. 1,500 sheets (trim width 15mm, A4, 80 gsm). Weight: approx. 145 kg. Power: 220-240V, 60Hz, 2.3A.
Paper Folding Unit-K1
Automates the folding process, allowing users to fold printed materials. (Requires either the Staple Finisher-AG1 or Booklet Finisher-AG1). Supported folding type: Z-Fold, Accordion Z-Fold, C-Fold, Half-Fold, Double Parallel Fold. Suitable for paper types: thin, plain, recycled, colour, and bond. Supports paper sizes: A3, A4R, B4 (Z-Fold)| A4R (Accordion Z-Fold, C-Fold, Half-Fold, Double Parallel Fold).| Supports paper weight: 52 to 105 gsm (Z-Fold, Accordion Z-Fold, C-Fold, Half-Fold)| 52 to 90 gsm (Double Parallel Fold). Weight: Approx. 71 kg.
Stapling/ Hole Punching
Staple Finisher-AC1
Equipped with stapling functionality, allowing users to automatically staple printed documents. This feature is particularly useful for creating booklets, reports, presentations, and other multi-page documents that require secure binding. Users can choose from various stapling options to suit their specific requirements.
Staple Finisher-AF1
Offers stapling functionality along with additional finishing options, such as stacking and collating. It enables users to automatically staple printed documents and organise them into neat, orderly sets, streamlining the finishing process. This finisher supports multiple stapling positions, allowing users to choose the most suitable option for their specific document requirements.
Multi-Function Professional Puncher-C1
Offers a wide range of punching options to accommodate various document finishing requirements. (Requires either the Staple Finisher-AG1 or Booklet Finisher-AG1). It supports multiple punch patterns, including standard hole punching, as well as custom patterns tailored to specific binding methods such as comb binding, coil binding, and ring binding. The paper weight it supports for punching is between 75-300 gsm (plain paper), and 118-300 gsm (coated paper). The paper sizes it supports for punching are SRA3, A3, SRA4, SRA4R, A4, A4R.| The paper weight it supports for creasing is between 157-300 gsm (plain paper/ coated paper). The paper sizes it supports for creasing are SRA3, A3, A4R, 13”x19”, 13”x19.2”. Weight: Approx. 102kg. Power: 230V, 50Hz, 1.9A.

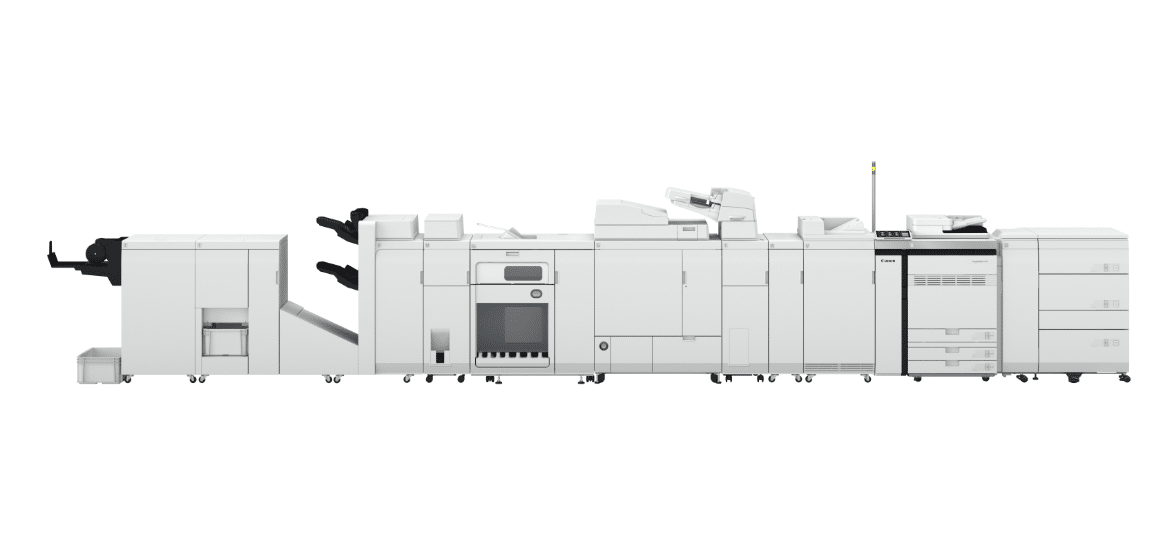

Optional device configuration
Knife Trimmer-B1
High Capacity Stacker-J1
Perfect Binder-F1
Document Insertion Unit-R1
Attention Light
Operating Panel
DFD Adapter-A3
Booklet Finisher-AF1
Booklet Trimmer-G1
Paper Trays
Multi-Drawer Paper Deck
Sensing Unit-B1
Paper Folding Unit-K1
Features & Benefits
https://www.youtube.com/watch?v=XaUszFzzdTc
Use cases
Redefine Quality with the Canon imagePRESS V900 Production Press.
Photographic Printing
Advanced colour management technology ensures accurate colour reproduction, which is crucial for maintaining the fidelity of photographic images.
Book Publishing
High-resolution output ensures that printed text and images are produced with exceptional detail, making it ideal for producing professional-looking books.
Commercial Printing
Ideal for commercial printers with its high-volume printing, media versatility, colour consistency, professional quality, reliability, and durability.
