Products > Xerox > Xerox Versant 4100 Production Press

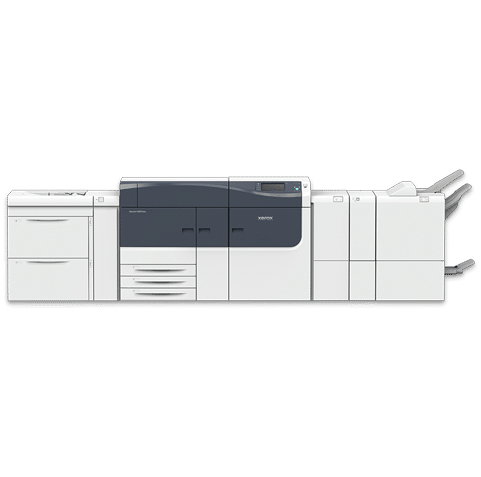

Xerox Versant 4100
Production Press
A versatile press reinvented with even more smart automation for virtually touch-free quality control
Elevate your printing capabilities with the Xerox Versant 4100 Press. Designed to meet the rigorous demands of modern print environments, this cutting-edge press seamlessly combines automation with precision. Achieve stunning 2400 x 2400 dpi Ultra HD Resolution using Xerox® EA Toner and 10-bit RIP rendering for exceptional image quality. Streamline your workflow with advanced features like Full Width Array (FWA) for automated image alignment, colour calibration, and media management. With versatile feeding options up to 1.2 meters and customisable finishing solutions, the Versant 4100 empowers your business to produce professional-grade prints with unmatched efficiency.
100
Pages per minute (A4)
2400 x 2400
Dpi
52 – 400
Gsm
330 x 1200 mm
Paper size
| Print/Copy Process | The Xerox Versant 4100 Press delivers unparalleled print quality with its advanced Ultra HD Resolution, featuring 2400 x 2400 dpi imaging and 10-bit RIP rendering for exceptional detail and colour accuracy. It leverages the Full Width Array (FWA) to automate critical tasks like image alignment, density uniformity, and colour calibration, ensuring consistent, high-quality output with minimal operator intervention. With the ability to handle diverse media, including heavyweights up to 400 gsm and long sheets up to 1.2 meters, this press excels in both versatility and precision. |
|---|---|
| Output Speed | (B&W and Full-colour): 100 ppm (A4) 50 ppm (A3) |
| Paper Capacity | The Xerox Versant 4100 Press offers impressive paper capacity and versatile handling options to meet the demands of diverse print jobs. With the ability to handle various sizes and types of media, it ensures seamless, high-capacity production. |
| Paper Weight | Paper weight 52 – 400 g/m2. |
| Power Requirements | 208-240V/50/60Hz (Base Configuration) |
| Dimensions W x D x H | Dimensions of the main engine 2,670 x 807 x 1,110 mm (105.11 x 31.77 x 43.7 inches). |
| Weight | Approx. 740kg (main unit). |
Paper Handling and Input Trays
Standard Paper Trays: The Xerox Versant 4100 Press includes three standard paper trays, each with a capacity of 550 sheets. These trays support a variety of media types ranging from 52 gsm to 256 gsm, suitable for both coated and uncoated papers.
Optional High Capacity Feeder: This feeder adds a tray with a capacity of 2,000 sheets, supporting media sizes up to 13″ x 19.2″ (330 x 488 mm) and weights up to 400 gsm.
Advanced Oversized High Capacity Feeder (OHCF): This option provides two trays with a total capacity of 4,000 sheets, supporting a wide range of media weights (52-400 gsm) and sizes up to 13″ x 19.2″.
Dual Advanced Oversized High Capacity Feeder: Expands capacity to four trays, holding 8,000 sheets, and supporting media up to 400 gsm and sizes up to 13″ x 19.2″.
High Capacity XLS Vacuum Feeder: Features two trays with a combined capacity of 2,800 sheets, supporting extra-long sheets (XLS) up to 47.2″ (1.2 m) in length and media weights up to 400 gsm.
Dual High Capacity XLS Vacuum Feeder: With four trays, this feeder increases capacity to 7,000 sheets, accommodating XLS media up to 47.2″ in length and media weights up to 400 gsm.
Finishing Options
High Capacity Stacker: Holds up to 5,000 sheets with an additional 500-sheet tray, supporting media from 55 gsm to 400 gsm. Includes a moveable cart for off-line finishing.
Offset Catch Tray: Holds 500 sheets, providing easy separation and handling with offset stacking.
Xerox® Production Ready Finisher: Offers stapling up to 100 sheets and stacking up to 3,000 sheets. Handles paper weights from 52 gsm to 350 gsm, ideal for various document sizes.
Xerox® Production Ready Finisher Booklet Maker: Adds booklet-making capabilities, creating stapled booklets with up to 30 uncoated sheets or 25 coated sheets.
Xerox® Production Ready Finisher Plus: Provides the same features as the standard finisher, with a 2,000-sheet capacity and integration with other finishing solutions.
Xerox® Basic Punch: Offers 2/3 hole, 2/4 hole, and Swedish 4 hole punch options, compatible with a wide range of paper sizes and weights.
Xerox® C/Z Folder: Produces C-Fold, Z-Fold, and Engineering Z-Fold patterns on various paper sizes, suitable for brochures and engineering documents.
GBC® AdvancedPunch Pro™: Integrates printing and punching, supporting various binding styles and handling up to 300 gsm paper for bound applications.
Xerox® Inserter: Inserts preprinted or blank media into documents, allowing for additional finishing options like trimming and punching.
Controllers
Xerox® EX-P 4100 Print Server Powered by Fiery®: This external digital front end (DFE) delivers powerful processing capabilities, enabling high-speed production with advanced colour management, and job control features tailored to optimise productivity and print quality.
Xerox® EX 4100 Print Server Powered by Fiery®: An embedded DFE, the EX 4100 Print Server provides robust performance and intuitive controls for managing complex print jobs, enhancing efficiency and maintaining consistent high-quality output.
Enhance your Xerox Versant 4100 Production Press with these configuration options to meet your specific paper handling, finishing, binding and controller needs. Customise your printing capabilities to match your unique requirements and deliver exceptional results.
The Xerox Versant 4100 is a versatile production press that can handle a variety of applications. Including packaging prototypes or short-run applications, due to the machine’s accurate colour reproduction. As well as other print collateral:
Brochures
Produces vibrant, high-quality brochures with sharp images and precise text, perfect for marketing campaigns. Its ability to handle a variety of paper weights and sizes ensures professional results.
Flyers & Leaflets
The printer can quickly and efficiently produce large quantities of flyers and leaflets, ideal for promotions, events, and advertising campaigns, ensuring consistent quality across all copies.
Photo Books
With its advanced image quality and colour consistency, the Xerox Versant 4100 is the ideal printer for producing high-end photo books, preserving memories with detailed and vibrant prints.
Booklets
This printer excels in producing on-demand booklets, including product catalogues and event programs, with options for saddle-stitching or square-fold binding, delivering a polished finish.
Packaging Prototypes
The Xerox Versant 4100 can produce small runs of custom packaging prototypes, including boxes, labels and wrapping, allowing businesses to test and refine designs before mass production.
Business Cards
Ideal for printing business cards with exceptionally crisp text and vibrant, eye-catching colours on a wide variety of cardstock, allowing for the creation of highly impactful first impressions.
Event Invitations
The printer’s flexibility with paper types and finishes allows for the creation of elegant, custom event invitations, including options for embossing, foil stamping, and other specialty finishes.
Direct Mail Campaigns
The Versant 4100’s variable data printing allows for highly personalised direct mail pieces, such as letters and offers, enabling targeted marketing efforts that resonate with individual recipients.
Xerox® Production Ready Finisher
This finisher provides high-quality stapling for documents with a variable-length stapler, supporting both single and dual stapling options with a 100-sheet capacity. It handles paper sizes from 7.2” x 5.7” (182 x 146 mm) to 11.7” x 17.0” (297 x 432 mm), accommodates paper weights up to 350 gsm, and features a stacker tray that holds up to 3,000 sheets, along with a top tray for an additional 500 sheets.
Xerox® Production Ready Finisher Booklet Maker:
This finisher adds booklet-making capabilities to your Xerox® Production Ready Finisher, allowing for the creation of stapled booklets with up to 30 uncoated sheets or 25 coated sheets. It supports standard sizes from 12″ x 18″ (SRA3) to 8.5″ x 11″ (A4), handles a range of paper weights from 60-350 gsm uncoated or 106-350 gsm coated, and features a high-capacity output of up to 2,000 booklets or 3,000 regular sheets.
Xerox® Production Ready Finisher Plus
This finisher offers all the capabilities of the standard Production Ready Finisher but with a reduced stack tray capacity of 2,000 sheets. It also features an added Finishing Transport Module, enabling seamless connection to various Finishing Partner Solutions for enhanced finishing options.
High Capacity Stacker
This unit features a 5,000-sheet offsetting output stack tray with an additional 500-sheet purge tray, accommodating paper weights from 55 gsm to 400 gsm and supporting sizes from 8.0” x 7.2” to 13” x 19.2”. It includes a moveable cart for easy off-line finishing, with the option for a single or dual configuration and additional carts available.
Xerox® C/Z Folder
This optional folder module efficiently produces C-Fold and Z-Fold documents on standard letter or A4 paper. It also creates Engineering Z-Folds on larger stock, such as 11” x 17” or A3/B4, reducing the sheet size for easy handling. Ideal for uncoated paper ranging from 60 to 90 gsm, the C/Z Folder seamlessly integrates with any Production Ready Finisher.
Xerox® SquareFold® Trimmer
This module produces professional square-fold booklets by flattening the booklet spine, giving it the look of a perfect-bound book. It attaches directly to the Production Ready Booklet Maker Finisher and provides inline square folding and face trimming, accommodating booklets up to 30 sheets and offering precise trimming from 2-20 mm. Ideal for creating polished, full-bleed booklets when used with the Crease and Two-Sided Trimmer.
Xerox® Crease and Two-sided Trimmer
This module trims 6-25 mm from the head and foot of prints or booklets, creating even edges and a creased spine for a polished finish. When paired with the Square-Fold Trimmer Module, it enables full-bleed booklet production by trimming all sides except the binding. It handles a range of sheet sizes and weights, with the ability to add up to five custom creases across each sheet.
2-Knife Trimmer
Attaching in line with the Square-Fold Trimmer, the 2-Knife Trimmer precisely trims the top and bottom edges of booklets, providing a clean, professional finish. This solution minimises operator intervention and maintains booklet integrity while offering adjustable trim dimensions and accommodating booklets up to 25 sheets thick.
GBC® AdvancedPunch Pro™
The GBC® AdvancedPunch Pro™ enhances production efficiency by combining printing, punching, and collating into one streamlined process, perfect for near-line coil and comb binding applications. It supports a range of sheet sizes and weights up to 110lb Cover (300 gsm) and offers full bleed processing, making it ideal for calendars and photo books. With optional interchangeable die sets and automatic die detection, it ensures versatility and precision in creating various binding styles.

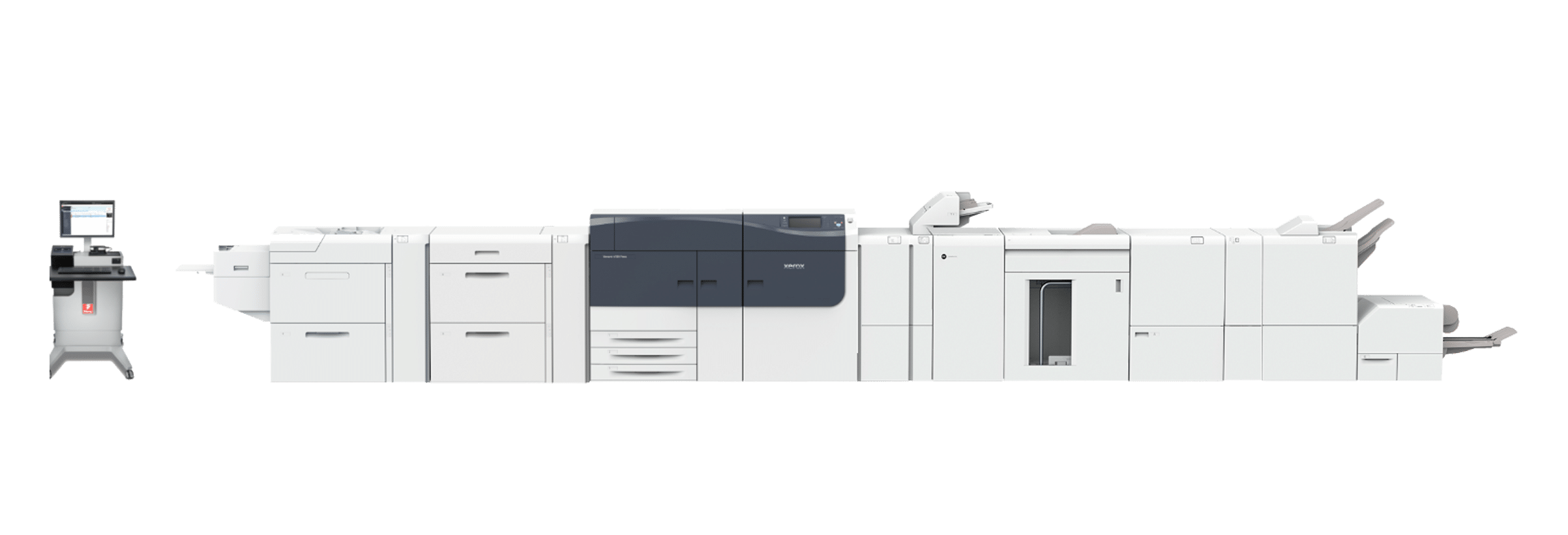

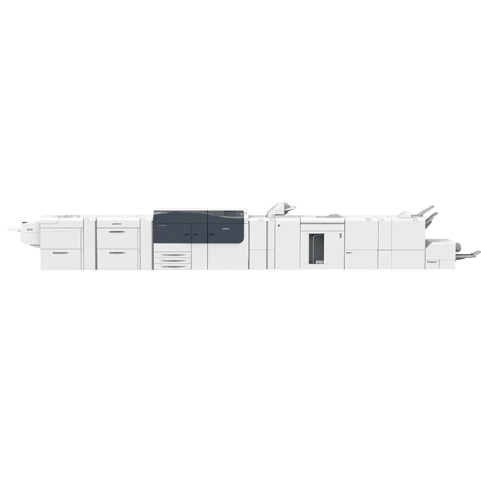

Optional device configuration
Xerox® EX 4100 Print Server Powered by Fiery®
Dual High Capacity XLS Vacuum Feeder
Xerox® Versant® 4100 Press
Interface Decurler Module
Xerox® Inserter
GBC® AdvancedPunch Pro™
High Capacity Stacker
Xerox® Crease and Two-sided Trimmer
Xerox® C/Z Folder
Xerox® Production Ready Finisher Booklet Maker
Xerox® SquareFold® Trimmer
Features & Benefits
https://www.youtube.com/watch?v=jGjuO_rL4P4&t=1s
Use cases
Redefine Quality with the Xerox Versant 4100 Production Press.
Brochures
Produce vibrant brochures on various media types. Its advanced colour management and finishing options streamline the creation of folded, trimmed, and stapled materials.
Custom Booklets
Perfect for creating professional-grade booklets, the booklet maker, SquareFold Trimmer, and 2-Knife Trimmer ensure precise, full-bleed booklets with neatly trimmed edges.
Direct Mail
Supports diverse media and finishing options, enabling efficient, personalised direct mail production. High capacity and variable data capabilities ensure timely, targeted materials.
