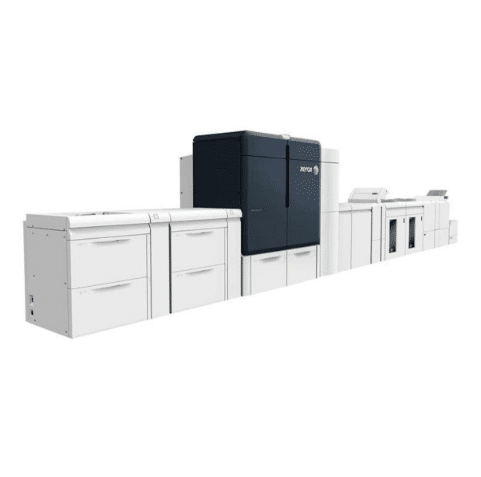

Xerox Iridesse
Production Press
Deliver “WOW” Prints Through Digital Enhancements
The Xerox Iridesse is a high-performance digital production press known for its ability to print stunning, high-quality images and documents with exceptional colour accuracy. The Iridesse uses advanced printing technologies, such as six-colour printing with metallic and clear embellishments, allowing businesses to create eye-catching and unique print materials. This technology is particularly advantageous for your managed production print services, as it enables you to offer your clients innovative and visually appealing print solutions.
120
Pages per minute
2400 x 2400 dpi
x 1 bit
52 – 400
Gsm
475,000
Recommended max monthly volume
| Print/Copy Process | This press employs a sophisticated printing process beginning with high capacity feeding options, followed by up to six inline print stations utilizing CMYK and Speciality Dry Inks such as White, Clear, Silver, Gold, and Fluorescent Pink for enhanced effects. The digital front end, Xerox® EX-P 6 Print Server Powered by Fiery®, manages job processing efficiently. |
|---|---|
| Fusing | The belt roll fuser rapidly transfers energy more efficiently using a silicon-coated Teflon belt that fuses a wide range of stocks, including coated and uncoated papers, up to 400 gsm at rated speed. |
| Output Speed | (B&W and Full-colour): 120 ppm (A4); (B&W and Full-colour): 60ppm (A3). |
| Paper Capacity | Come with 2 standard paper trays at 2,000 sheets each. Maximum 12,500 sheets of paper capacity with options. Maximum sheet size 330 x 488 mm. Extra Long Sheet (XLS) maximum length 1.2mm (simplex); 729mm (duplex).
The Multi-Sheet (MSI) Bypass tray holds up to 250 sheets. |
| Paper Weight | Paper weight 52 – 400 gsm. |
| Power Requirements | 200–240 volts, 10 amp, 50 Hz. |
| Dimensions W x D x H | 118.5” x 43” x 73.3” (3,009 mm x 1,092 mm x 1,865 mm). |
| Weight | The base printing system weight is 1,373 kg. |
Paper Handling and Input Trays
Standard Paper Trays: This device comes with two standard paper trays, each capable of holding up to 2,000 sheets.
High Capacity Feeder: This is available in single or dual combinations, it includes two paper trays per feeder, each capable of holding up to 2,000 sheets.
Optional Xerox High Capacity XLS Vacuum Feeders: These optional feeders, available in single or dual combinations, contribute to the paper input capacity. The top tray can hold up to 700 Extra Long Sheets (XLS), and the bottom tray can hold up to 2,100 standard sheets.
Inserter: The device is equipped with an inserter that can handle up to 250 sheets, adding to the input options.
Finishing and Binding Options
Trimming and Full-Bleed Output: Available options that contribute to full-bleed finishing and allow different trim and creasing options.
Multi-Punching: Various hole punch options are available, including GBC AdvancedPunch™ Pro with 3-hole punch for different finishing configurations.
Stacking: Stacking options are available for efficient handling of print materials.
Booklet Making: Different options of high-quality on-demand booklet makers, containing different capabilities like stitch, staple, fold, trim, rotate, crease, and bleed trim.
Perfect Binding: Perfect binding is available for books up to 60 mm thick. Capable of automatically adapting to the thickness of each job.
Controllers
Digital Front Ends (DFE): Known as the Xerox EX-P 6 Print Server Powered by Fiery. This serves as the controller for the printing press, managing the print job processing, colour management and the overall workflow.
Enhance your Xerox Iridesse Production Press with these configuration options to meet your specific paper handling, finishing, and binding needs. Customise your printing capabilities to match your unique requirements and deliver exceptional results.
Packaging and Labels
The Xerox Iridesse Production Press is well-suited for packaging and label printing applications, as well as other print collateral, offering advanced features that cater to the specific needs of the commercial print industry.
Commercial Printing
Produces vibrant colour prints and attention-grabbing finishes with stations that apply Specialty Dry Inks under or over CMYK, colours include white, fluorescent pink, clear, low gloss clear, gold, and silver metallics.
Direct Mail Campaigns
Enhance the effectiveness of direct mail campaigns by creating personalised and visually appealing mail. This machine can also be used with variable data printing capabilities, enhancing direct mail further.
Packaging Prototypes
Ideal for print prototypes and short runs of packaging materials, allowing quick testing and iteration of designs before full-scale production.
Photobooks and Photo Merchandise
Create visually stunning photobooks and personalised photo merchandise with the ability to reproduce vibrant images and apply special finishes.
Event Collateral
Create impactful event collateral such as invitations, programs, posters and banners with vibrant colours and a professional finish.
Customised Marketing Materials
Produce high-quality marketing materials such as brochures, flyers, and promotional pamphlets with vibrant colours and attention-grabbing finishes.
Business Documents
Generate professional business documents, including reports, presentations, and proposals, with precise and sharp print quality.
Book Publishing
Print short-run and on-demand books with high-quality colour reproduction, making it suitable for small-scale book publishing.
Perfect Binder
C.P. Bourg BB3202 Perfect Binder
Fully automated, in-line perfect binder, which uniquely produces books without the intervention of an operator, can use Polyurethane Reactive adhesive or Ethylene Vinyl Acetate adhesive. This single-clamp perfect binder includes a touchscreen interface for easy operation and adjustments. It supports cover sheets of 80-300 gsm, coated or uncoated, and inner sheets of 60 to 200 gsm coated or uncoated. With knife-creasing technology and up to 13 positive or negative creases.
Production Ready Finisher Plus
This unit adds a Finishing Transport Module which enables connection to our Finishing Partner Solutions. |W x D x H (inches): 54”x 34” x 46” |W x D x H (mm): 1375 mm x 855 mm x 1168 mm.
Paper Handling
Dual-Mode Bourg Sheet Feeder (BSF)
Offers the efficiency and integrity of in-line production with the flexibility of off-line operation. Its innovative dual-mode design lets you shift your finishing resources to accommodate jobs from multiple marking engines, all with the same high degree of set-secure integrity as jobs produced in-line.
Duplo DMSF-10 Entry Production Dual Mode Sheet Feeder
This combines the benefits of an inline finishing device with the convenience and cost-effectiveness of offline finishing. With the inline DMSF-10, customers can share inline finishing with other printers.
Stackers
High Capacity Stacker
500 sheet top tray up to 1.2 M. Offset stacking of 5,000 sheets. Stock ranges from 52 to 400 gsm (35 lb text to 145 lb cover) coated/uncoated. Up to 350 gsm (130 lb cover) is recommended. |W x D x H (inches): 31”x 29” x 39” |W x D x H (mm): 800 mm x 724 mm x 992 mm.
Booklet Makers
C.P. Bourg BM-e Booklet Maker
You can stitch, fold and trim up to 30 sheets (120 pages) and produce booklets and other finished documents faster, at full press size, and with guaranteed set integrity for zero waste. Accommodates large paper range and sizes up to 14.56″ x 23.62″ (370 x 600 mm). Provides automatic top, corner, side or saddle stitching. With the automatic ejection of faulted jobs, enabling continuous production.
C.P. Bourg BDF-e Document Finisher
Fully automated booklet maker controlled by a large user-friendly colour touchscreen interface in which stitching, folding, and trimming operations are completed in a single enclosed unit.
Plockmatic PowerSquare™ 160 Booklet Maker
Booklet-making system which produces square-edge booklets that lie flat and are easy to stack, handle and pack. With a single integrated system that rotates sheets, staples, folds, square forms, and face trims in a single machine. Wide media range including landscape books (A4 or 8 ½ x 11): 60 – 400 gsm and 200 x 200 mm to 370 x 620 mm.
Plockmatic PowerSquare™ 224 Booklet Maker
Uniquely combines stitching, folding, spine forming and trimming to produce SquareBack™ books up to 224 pages. Fast and economical alternative to perfect binding and tape binding. Heavy-duty side-loading stitch head inserts one to six stitches, allowing 2-up or 3-up production. No warm-up time, instantly on.
Plockmatic Pro50/35™ Booklet Maker
Robust, fully integrated 50- or 35-sheet professional booklet-making system with the option of bleed trim and square fold. The Pro 50 booklet maker produces saddle-stitched books up to 200 pages (Pro 35 up to 140 pages) from a variety of paper sizes. Based on the configuration, it can rotate, crease, bleed trim, square fold spine, patent fold, face trim, and pre-printer covers.
Production Ready Finisher Booklet Maker
The Production Ready Booklet Maker Finisher adds basic booklet-making capability to the features of the Production Ready Finisher. Creates stapled booklets up to 30 uncoated sheets (120 imposed pages at 90 gsm)/ 25 sheets coated sheets (100 imposed pages at coated 90 gsm). |W x D x H (inches): 35”x 29” x 39” |W x D x H (mm): 890 mm x 724 mm x 992 mm.
Cutters/ Trimmers/ Folders
C/Z Folder
An optional Folder unit that produces Z-fold, C-Fold, and Engineering Z-Fold. This module can be added to any of the Production Ready Finishers. Produces sheets with a C Fold or Z Fold, on letter stock (8.5” x 11” or A4). Produces an Engineering or Half Z Fold on larger stock. |W x D x H (inches): 9”x 29” x 39” |W x D x H (mm): 232 mm x 724 mm x 992 mm.
Crease and Two-Sided Trimmer
Trims 6-25 mm from the head and foot of prints or booklets to produce an even edge and creased spine. |W x D x H (inches): 24”x 29” x 39” |W x D x H (mm): 605 mm x 724 mm x 992 mm.
SquareFold Trimmer
Produces professional square-fold booklets quickly and easily to give documents a more professional, finished look. |W x D x H (inches): 42”x 29” x 21” |W x D x H (mm): 1066 mm x 724 mm x 546 mm.
Stapling/ Hole Punching
Production Ready Finisher
Ensures consistent high-quality stapled sets for small or large documents with a variable-length stapler, single or dual stapling option, and a 100-sheet capacity. Stapled sheet sizes 7.2 x 5.7” (182 x 146 mm) to 11.7 x 17.0” (297 x 432 mm). Handles paper weights 52-350 gsm uncoated or 72-350 gsm coated for both stacking and stapling. |W x D x H (inches): 34”x 29” x 39” |W x D x H (mm): 855 mm x 724 mm x 992 mm.
GBC AdvancePunch Pro™
AdvancedPunch™ Pro goes a step beyond simply punching inside the press delivering production power, speed and larger sheet options. Combines printing and punching/collating into one easy process for submission to near-line coil and comb-bound applications. |W x D x H (inches): 18”x 29” x 39” |W x D x H (mm): 445 mm x 724 mm x 992 mm.

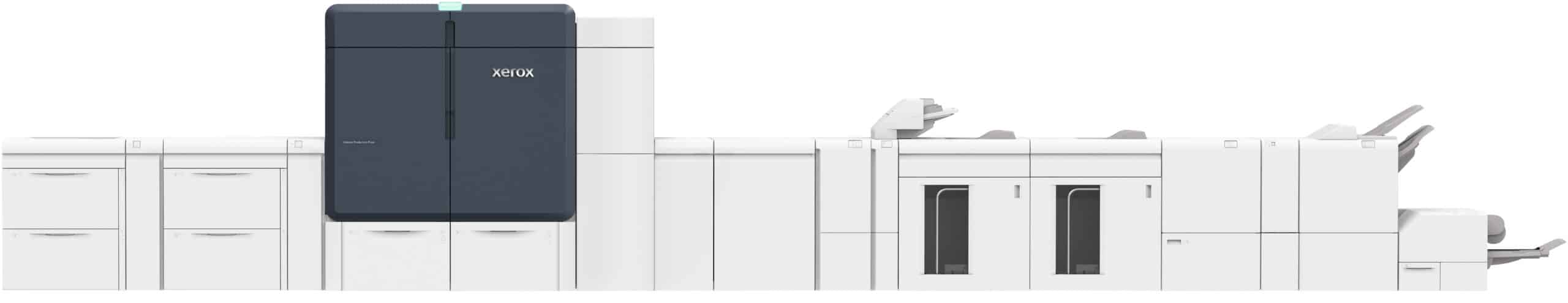

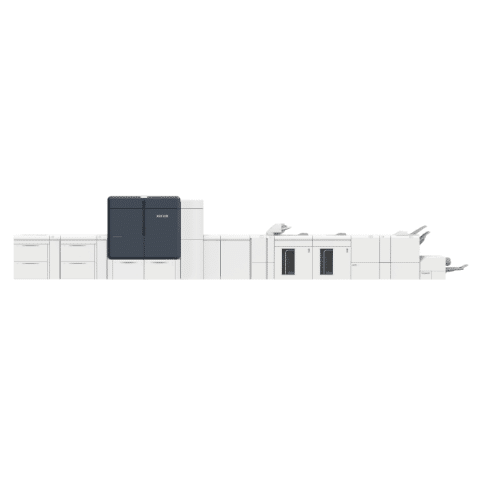

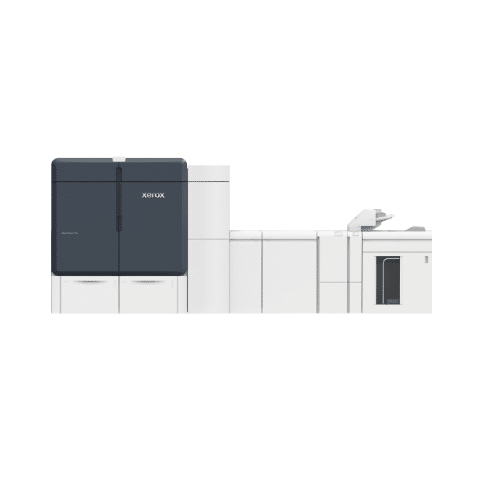

Optional device configuration
Dual Advanced High Capacity Feeders
Advanced High Capacity Feeders
Specialty Dry Inks
Standard High Capacity Feeders
Belt Roller Fusing
Cooling Unit
Full Width Array
Decurler Module
Interposer
High Capacity Stacker
Crease and Two-Sided Trimmer
C/Z Folder
Production Ready Finisher
SquareFold Trimmer
Features & Benefits
https://www.youtube.com/watch?v=EXMlnxEAxew
Use cases
Redefine Performance and Quality with the Xerox Iridesse Production Press.
Direct Mail
Create personalised direct mail campaigns with the use of variable data printing capabilities which work perfectly with the Xerox Iridesse.
Book Publishing
Create visually stunning books and photobooks with the ability to reproduce vibrant images and apply special finishes.
Commercial Printing
Create visually “wow” prints like invitations, programs, posters and banners with vibrant colours and a professional finish.
