Products > Ricoh> Ricoh Pro C7500 Production Press

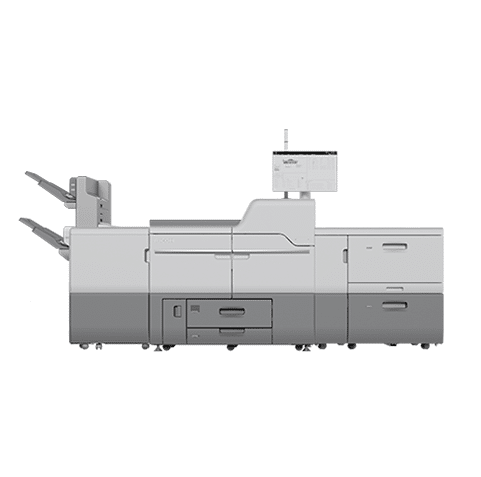

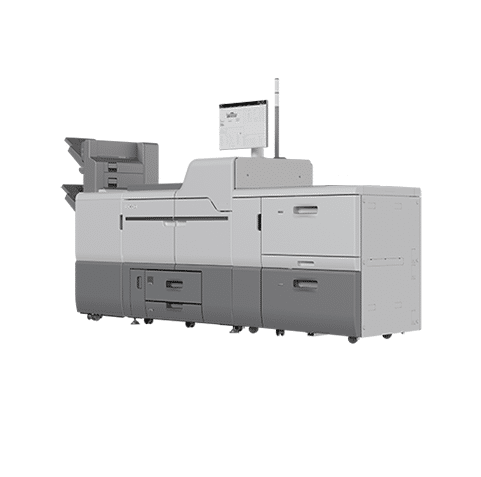

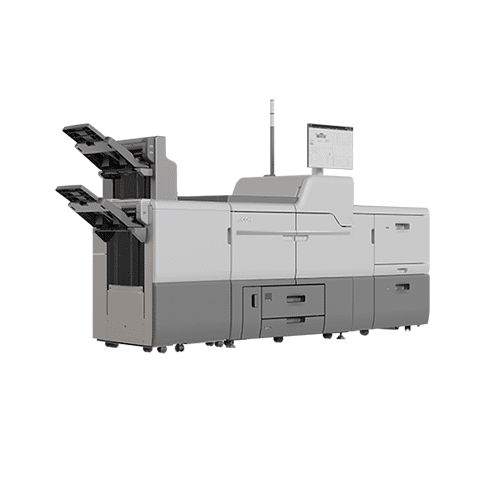

Ricoh Pro C7500
Production Press
The Ricoh Pro C7500 is a cutting-edge digital press offering unmatched versatility, exceptional quality, and efficiency.
The Ricoh Pro C7500 sets new standards for digital production printing, combining precision engineering with advanced technology to deliver outstanding results. Designed for high-volume environments, this versatile press handles a wide range of media, from lightweight stocks to heavy card, ensuring exceptional print quality on every job. With innovative features such as enhanced colour consistency, advanced finishing options, and intuitive controls, the Pro C7500 empowers businesses to meet demanding deadlines while reducing waste and maximising productivity. It’s the ideal solution for commercial printers and in-house production teams.
75
Pages per minute
2400 x 4800
Dpi
52 – 360
Gsm
330 x 1260 mm
Paper size
| Print/Copy Process | The Ricoh Pro C7500 delivers exceptional efficiency and precision in its print and copy process. With advanced laser technology and a resolution of up to 2400 x 4800 dpi, it produces stunningly sharp images and crisp text. The machine’s intelligent media handling supports a wide range of paper sizes and weights, ensuring flexibility for various projects. Its streamlined workflow includes high-speed processing, enabling consistent output of up to 75 pages per minute. This combination of speed, quality, and versatility makes it an ideal solution for demanding production environments. |
|---|---|
| Output Speed | (B&W and Full-colour): 75ppm |
| Paper Capacity | The Ricoh Pro C7500 features a robust paper capacity of up to 8,500 sheets, accommodating a range of paper sizes from SRA3 to A6. This versatility supports high-volume production with seamless handling of diverse printing needs. |
| Paper Weight | Paper weight 52 – 400 g/m2. |
| Power Requirements | 200-240 V, 50/60 Hz, 16 A |
| Dimensions W x D x H | Dimensions of the main engine 1,320 mm x 910 mm x 1,870 mm (including status pole) |
| Weight | Less than 560 kg (main unit). |
Paper Handling and Input Trays
Vacuum Feed LCIT RT5150: The Vacuum Feed LCIT RT5150 supports up to 4,400 sheets of media with sizes up to 13″ × 19.2″ and weights up to 173 lb. Cover (470 gsm). Configure up to three units for large-scale printing needs.
Vacuum Feed Banner Sheet Tray Type S9: Paired with the Vacuum Feed LCIT RT5150, this tray supports coated and uncoated media up to 13″ × 27.5″ and 300 gsm. Its 730-sheet capacity ensures smooth handling of oversized banner prints.
Extension Vacuum Feed Banner Sheet Tray Type S14: For long-format prints, this extension enables handling of media up to 13″ × 37.5″ and weights up to 310 gsm. It offers a 500-sheet capacity, ideal for larger production requirements.
Multi Bypass Tray BY5020: This tray provides additional capacity for up to 500 sheets of uncoated media, supporting sizes up to 13″ × 19.2″ and weights of 80 lb. Cover (216 gsm). A versatile choice for expanded document output types.
Plockmatic LCT3500 XL: Designed for high-capacity long-sheet handling, this tray accommodates sheets up to 27.5″ in length and weights up to 350 gsm. It features vacuum-feed technology and holds a variety of substrates for advanced production workflows.
Cover Interposer Tray CI5040: With two paper sources, this tray feeds pre-printed covers or inserts directly into the workflow, supporting media up to 13″ × 19.2″ and 130 lb. Cover (350 gsm). It eliminates manual insertion, enhancing productivity.
Plockmatic High Capacity Interposer: This interposer supports automatic insertion of pre-printed offset prints, covers, or tabs. Its two trays hold up to 1,750 sheets each, supporting media weights up to 350 gsm for seamless integration into production workflows.
Finishing Options
Multi-Folding Unit FD5030: Offers inline folding in four styles: Half-Fold, Letter Fold-In, Letter Fold-Out, and Z-Fold. Ideal for brochures, menus, and newsletters. Handles varied document styles with precision and reliability.
Perfect Binder GB5010: Produces professional perfect-bound books with up to 200 sheets. Includes cover insertion for 300 gsm media and automatic edge trimming, ensuring polished, high-quality output for booklets and manuals.
GBC StreamPunch Plus 115V: Enables precise inline punching with customisable die sets for diverse patterns. Supports variable sheet sizes and tab processing, delivering productivity without compromising quality. Not suitable for 8″ × 14″ saddle punching.
Buffer Pass Unit Type S9: Specialised for coated stocks or heavy toner coverage to prevent paper clumping. Ensures smooth operation in high-demand production environments, improving reliability and output quality.
High Capacity Stacker SK5040: Stacks up to 5,000 sheets of paper with dual-unit configuration options. Streamlines high-volume printing workflows, minimising manual intervention for greater efficiency.
Finisher SR5110: Staples up to 100 sheets (8.5″ × 11″) or 50 sheets (11″ × 17″). Offers stacking for 4,500 sheets, four staple options, and optional hole punching, enhancing versatility for large-scale production.
Booklet Finisher SR5120: Creates saddle-stitched booklets up to 120 pages with multi-position stapling for 100 sheets. Stacks 3,500 sheets and supports up to 130 lb. Cover media, ensuring robust booklet production.
Trimmer Unit TR5050: Trims the creep edge of saddle-stitched booklets for a clean, professional finish. Handles up to 30-sheet booklets (120 pages), making it ideal for polished, high-volume outputs.
Plockmatic Square Back Trimmer: Adds square folding and face trimming to booklets for a sharp, finished appearance. Offers bleed trimming with operator assistance, perfect for premium-quality publications.
Controllers
Fiery Colour Controller N-70A (Optional): The N-70A features dual 12-core Intel Xeon processors, 32 GB RAM, and dual storage (480 GB SSD and 2 x 2 TB HDDs). Powered by Fiery FS500 Pro, it supports advanced colour workflows and comprehensive file formats for demanding production environments.
Fiery Colour Controller N-50A (Optional): The N-50A delivers efficient performance with an Intel Core i5 processor, 8 GB RAM, and storage comprising a 256 GB SSD and 1 TB HDD. Running Fiery FS500 Pro, it supports versatile file formats and robust colour management for mid-level production needs.
Enhance your Ricoh Pro C7500 with these configuration options to meet your specific paper handling, finishing, binding and controller needs. Customise your printing capabilities to match your unique requirements and deliver exceptional results.
The Ricoh Pro C7500 offers a wide range of versatile applications, making it ideal for various industries. From high-quality commercial printing to personalised marketing materials, its advanced features support diverse production needs with exceptional efficiency and output quality.
Commercial Printing
The Ricoh Pro C7500 is ideal for commercial print shops that require high-quality, high-volume production. It handles a range of print jobs, from marketing materials to books, with exceptional output quality and speed.
Direct Mail Campaigns
With advanced variable data printing capabilities, the Ricoh Pro C7500 is perfect for personalised direct mail campaigns. It ensures each print job is tailored to individual recipients, enhancing customer engagement and response rates.
Book Printing
The Ricoh Pro C7500 offers precise colour reproduction and flexible paper handling, making it ideal for printing high-quality books. It supports various paper sizes and weights, ensuring superior print results.
Marketing Collateral
Produce professional-grade brochures, flyers, and promotional materials with the Ricoh Pro C7500. Its exceptional colour accuracy and fast print speeds make it ideal for high-volume marketing collateral production.
Short-Run Printing
The Ricoh Pro C7500 excels in short-run printing, offering cost-effective solutions for small print runs. It delivers fast turnaround times and high-quality output for customised or on-demand projects.
Point-of-Sales Materials
Ideal for creating eye-catching point-of-sale (POS) displays, the Ricoh Pro C7500 ensures vibrant colour and precise printing. It can handle a variety of paper sizes and finishes, enhancing retail marketing efforts.
Custom Packaging
The Ricoh Pro C7500 enables fast and accurate production of custom packaging materials. Its ability to print on various substrates and sizes makes it a versatile solution for packaging needs.
Photobooks and Calendars
Create high-quality photobooks and calendars with the Ricoh Pro C7500. Its superior print quality and support for specialty papers ensure vibrant, crisp images and professional-grade finished products.
Finisher SR5110
Provides multi-position stapling for up to 100 sheets (8.5″ × 11″) or 50 sheets (11″ × 17″) with stacking up to 4,500 sheets. Includes 4 staple options and optional 2- or 3-hole punching.
Booklet Finisher SR5120
Enables multi-position stapling for up to 100 sheets and booklet creation for up to 30 saddle-stitched sheets (120-page book). Supports stacking up to 3,500 sheets with optional punching capabilities.
Trimmer Unit TR5050
Offers precise trimming for saddle-stitched booklets by removing the “creep” edge. Handles up to 30 sheets, equivalent to a 120-page book, for a professional finish.
Plockmatic Square Back Trimmer
Adds square-folding and face-trimming to booklets, enhancing their professional appearance. Includes bleed trimming capabilities in an operator-assisted process.
Multi-Folding Unit FD5030
Delivers automatic inline document folding with four patterns: Half-Fold, Letter Fold-In, Letter Fold-Out, and Z-Fold. Ideal for creating newsletters, brochures, menus, and marketing materials.
GBC StreamPunch Plus 115V
Provides inline punching with a variety of user-friendly die sets for flexible document finishing. Supports “Double Punch” for two-up sheet processing with no productivity loss and delivers neatly punched stacks.

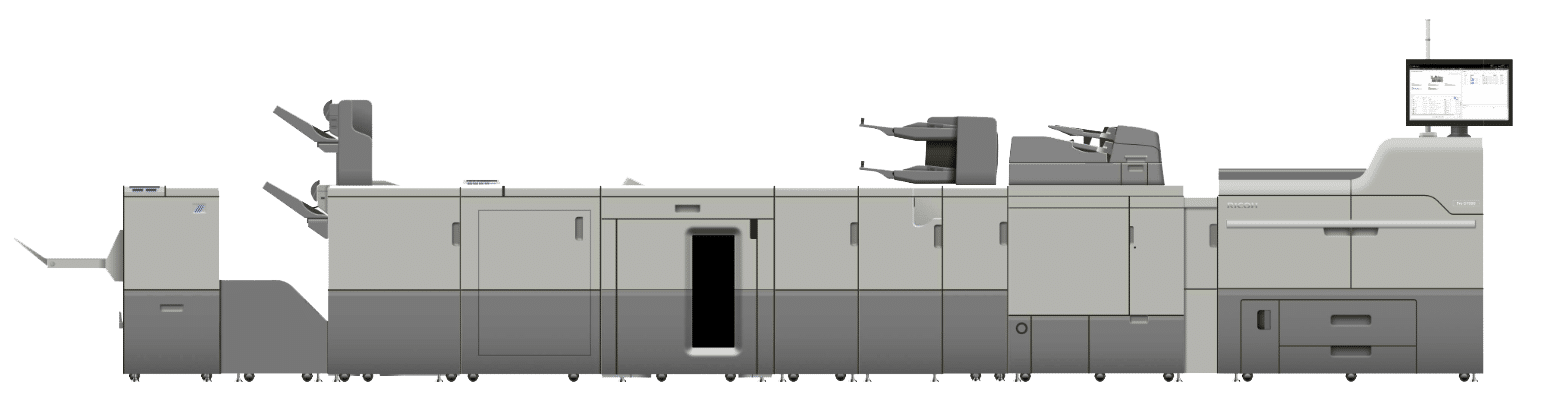

Optional device configuration
Plockmatic Square Back Trimmer
Booklet Finisher SR5120
High Capacity Stacker SK5040
Buffer Pass Unit Type S9
Cover Interposer Tray CI5040
Perfect Binder GB5010
Multi-Folding Unit FD5030
Pro C7500
Features & Benefits
https://www.youtube.com/watch?v=_SkFjtScQfs
Use cases
Redefine Quality with the Ricoh Pro C7500 Production Press.
Commercial Printing
Perfect for producing a wide range of high-quality printed materials. Its fast output and superior colour consistency make it an ideal choice for printing brochures, catalogues, and marketing materials
Direct Mail
This device excels in direct mail production, allowing businesses to print personalised mail pieces with vibrant colours and high-quality finishes. Its variable data printing (VDP) ensures tailored communication for targeted campaigns.
Short-Run Production
The Ricoh Pro C7500 delivers high-quality prints at a fast pace, allowing businesses to print small quantities of items such as promotional materials, books, or product packaging without the high costs typically associated with large runs.
