Products > Ricoh> Ricoh Pro C5310s Production Press

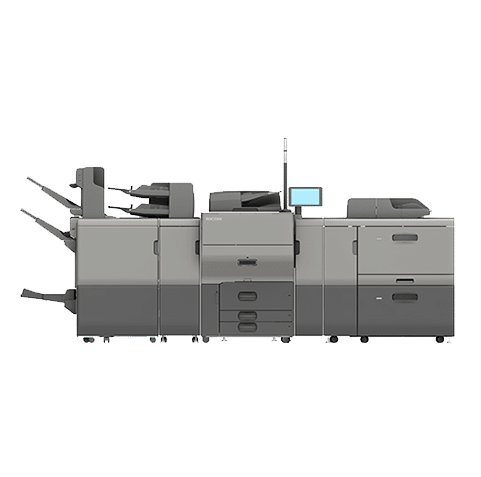

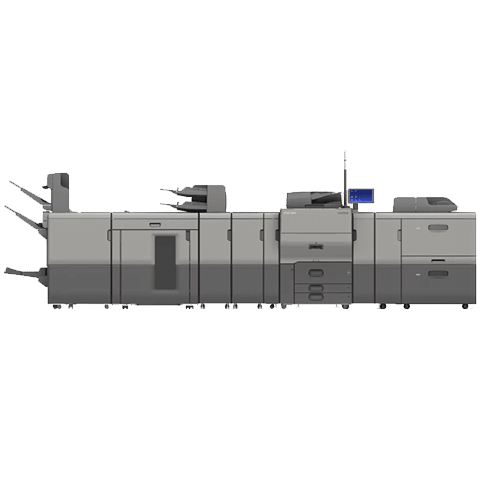

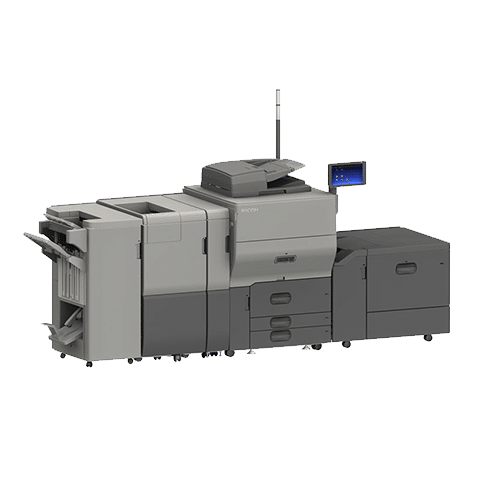

Ricoh Pro C5310s
Production Press
The Ricoh Pro C5310s combines high-quality colour printing, advanced media handling, and compact design for professional results.
The Ricoh Pro C5310s redefines versatility and performance in a compact, budget-friendly design. Engineered to deliver vibrant, high-quality colour prints at speeds of up to 80 pages per minute, it offers unparalleled media handling, supporting specialty stocks, oversized sheets, and heavier weights. With advanced features like VCSEL Laser technology for exceptional resolution, intuitive 10” Smart Operation Panel, and extensive finishing options, this printer is ideal for marketing agencies, in-plants, and commercial printers. The Pro C5310s empowers businesses to produce professional-grade materials efficiently, meeting diverse needs with precision and reliability.
80
Pages per minute
2400 x 4800
Dpi
52 – 360
Gsm
330 x 488 mm
Paper size
| Print/Copy Process | The Ricoh Pro C5310S utilises a cutting-edge 4-drum dry electrostatic transfer system with an internal transfer belt for precise printing and copying. Its oil-less belt fusing method ensures smooth, high-quality results. Designed for efficiency, the device features a 220-sheet ADF with single-pass duplex scanning up to 240 images per minute. With speeds of up to 80 ppm, it’s built to handle high-demand environments while maintaining exceptional 2400 x 4800 dpi resolution. |
|---|---|
| Output Speed | (B&W and Full-colour): 80ppm |
| Paper Capacity | The Ricoh Pro C5310S boasts a paper capacity of up to 8,550 sheets, handling sizes from A5 to SRA3 and weights from 52gsm to 360gsm, ensuring exceptional versatility for diverse professional printing needs. |
| Paper Weight | Paper weight 52 – 360 g/m2. |
| Power Requirements | 208 – 240V, 16A, 60 Hz (dedicated) |
| Dimensions W x D x H | 799 × 880 × 1648mm (incl. ADF and Status Light Pole) |
| Weight | Less than 262kg |
Paper Handling and Input Trays
LCIT RT4060: The LCIT RT4060 offers an additional 4,400-sheet capacity, supporting paper sizes up to 8.5″ × 11″/A4 and weights up to 58 lb. Bond/216 g/m².
LCIT RT5140: The LCIT RT5140 adds 2,200 sheets of paper, accommodating sizes up to 13″ × 19.2″ and weights up to 110 lb. Cover/300 g/m².
Vacuum Feed LCIT RT5120: The Vacuum Feed LCIT RT5120 accommodates up to 4,400 sheets, handling paper sizes up to 13″ × 19.2″ and weights up to 130 lb. Cover (360 gsm). Requires 120V, 50/60Hz, 15A power.
Bridge Unit BU5030: The Bridge Unit BU5030 connects the Vacuum Feed LCIT RT5120 to the main unit, enabling seamless integration for improved paper handling and performance. It requires the selection of the Vacuum Feed LCIT RT5120 to function.
Vacuum Feed Banner Sheet Tray Type S9: The Vacuum Feed Banner Sheet Tray Type S9 is designed for use with the LCIT RT5120, enabling oversized media handling up to 13″ × 27.5″ and supporting weights up to 360 gsm, with a 730-sheet capacity.
Multi Bypass Tray BY5020: The Multi Bypass Tray BY5020 adds up to 500-sheet capacity, supporting paper sizes up to 13″ × 19.2″ and weights up to 80 lb. Cover (216 gsm). It requires the Vacuum Feed LCIT RT5120 for integration.
Multi Bypass Banner Sheet Tray Type S9: The Multi Bypass Banner Sheet Tray Type S9 extends the Multi Bypass Tray BY5020 to accommodate oversized prints up to 27.5″. It cannot be used in conjunction with the Vacuum Feed Banner Sheet Tray Type S9.
High Capacity Stacker SK5040: The High Capacity Stacker SK5040 stacks up to 5,000 sheets of paper, with only one stacker per engine. It requires a Decurl Unit DU5060 and Buffer Pass Unit when selected, enhancing efficiency in high-volume environments.
Cover Interposer Tray CI5050: The Cover Interposer Tray CI5050 is compatible with Finisher SR5090 or Booklet Finisher SR5100, enabling easy insertion of pre-printed covers and inserts into the finishing workflow, reducing manual insertion and wear and tear on originals.
Cover Interposer Tray CI5040: The Cover Interposer Tray CI5040, compatible with the Finisher SR5110 or Booklet Finisher SR5120, enables seamless feeding of pre-printed covers and inserts from two sources, streamlining workflows and reducing manual insertion time and wear and tear on originals.
Decurl Unit DU5080: The Decurl Unit DU5080 is recommended for media prone to curling or in high humidity environments, and is essential when a Stacker is included. It is also ideal for printing Carbonless Paper.
Finishing and Binding Options
Buffer Pass Unit Type S9: The Buffer Pass Unit Type S9 is ideal for printing on coated stocks or high-coverage toner prints, preventing paper bricking. It requires a 120V, 50/60Hz, 15A power supply and cannot be installed with Copy Tray Type M42.
Multi-Folding Unit FD5020: The Multi-Folding Unit FD5020 offers automatic inline folding, with six fold patterns including Half-Fold, Tri-Fold, Gate-Fold, and Z-Fold. It’s ideal for producing professional finished documents like newsletters, brochures, and marketing materials.
GBC StreamPunch Ultra: The GBC StreamPunch Ultra is an inline punch system offering versatile die sets, “Double Punch” capabilities, and support for variable sheet sizes and tab processing. Sheets are punched on the fly, maintaining productivity with neatly stacked results.
GBC StreamWire: The GBC StreamWire is a fully automated inline binding system for creating twin loop wire-bound booklets. It supports StreamWire Spools in black, white, and silver, available in five sizes. Requires a GBC StreamPunch Ultra and Die StreamWire option.
Finisher SR5090: The Finisher SR5090 provides multi-position stapling for up to 65 sheets on 8.5″ × 11″ or 11″ × 17″ media, with a 3,000-sheet stacking capacity. It offers four staple options and supports optional two- or three-hole punching.
Finisher SR5110: The Finisher SR5110 provides multi-position stapling for up to 100 sheets (8.5″ × 11″) or 50 sheets (11″ × 17″) and stacks up to 4,500 sheets with four staple options. Optional two and three-hole punching is available.
Booklet Finisher SR5100: The Booklet Finisher SR5100 supports multi-position stapling of up to 65 sheets for 8.5″ × 11″ or 11″ × 17″ media. It creates saddle-stitched booklets up to 20 sheets and offers stacking, with optional two- and three-hole punch.
Booklet Finisher SR5120: The Booklet Finisher SR5120 enables multi-position stapling for up to 100 sheets (8.5″ × 11″) or 50 sheets (11″ × 17″). It also creates saddle-stitched booklets up to 30 sheets, with support for media weights up to 130 lb. Cover.
Trimmer Unit TR5050: The Trimmer Unit TR5050 trims the “creep” side of saddle-stitched booklets, handling up to 30 sheets (120 pages). It enhances booklet appearance when paired with the Booklet Finisher SR5120 for professional results.
Plockmatic Square Back Trimmer: The Plockmatic Square Back Trimmer enhances booklet finishing with square folding and face trimming, enabling professional-quality documents. It supports bleed trimming booklets in an operator-assisted process for precise results and efficient workflow.
Plockmatic PBM350e: The Plockmatic PBM350e efficiently staples and folds up to 35 sheets, creating booklets of up to 140 pages with a simple fold. It requires Finisher SR5110 or Bridge Unit BU5020 for installation.
Plockmatic PBM RCTe (Rotate Crease Trim Module): The Plockmatic PBM Rotate Crease Trim Module provides professional, full-bleed trimmed and creased booklets on the PBM350e. It requires the Plockmatic PBM Trim Module for full bleed trimming and does not support offline work.
Controllers
Colour Controller E-27B: The Fiery® Colour Controller E-27B offers superior colour and intuitive job management for professional documents. It features a Linux-based Fiery embedded controller and Fiery System FS400 Pro. Power requirements: 100–240V, 50/60 Hz, 3 Amps.
Colour Controller E-47B: The Fiery® Colour Controller E-47B enhances colour management and workflow automation for high-quality output. Powered by Fiery Server Controller with Windows 10 IoT, it requires 100–240V, 50/60 Hz, 6 Amps. Incompatible with certain options.
Enhance your Ricoh Pro C5310s with these configuration options to meet your specific paper handling, finishing, binding and controller needs. Customise your printing capabilities to match your unique requirements and deliver exceptional results.
The Ricoh Pro C5310s is a versatile and high-performance production printer designed to meet the needs of businesses across various industries. With its robust features, advanced media handling, and exceptional colour accuracy, it supports a wide range of professional applications, delivering consistent and reliable results every time.
Direct Mail Marketing
Create highly personalised direct mail campaigns with vibrant colour printing and support for thick media up to 350 g/m². Ideal for postcards, flyers, and brochures to captivate audiences and drive engagement.
On-Demand Booklet Printing
Produce professional booklets with seamless finishing options. The Ricoh Pro C5310s handles a variety of paper weights and sizes, ensuring crisp, high-quality output for manuals, catalogues, or educational materials.
Business Cards and Stationery
Print sharp, durable business cards, letterheads, and branded stationery. The device supports heavy stock and precise registration, making it perfect for creating standout materials for corporate and small business needs.
Event Marketing Materials
Easily produce posters, event programs, and invitations. With its ability to handle sizes from A6 to 13″ x 19.2″ and thick media, the Ricoh Pro C5310s ensures visually stunning results for any event.
Photo Books and Calendars
Deliver high-quality photo books and personalised calendars. The Ricoh Pro C5310s excels at reproducing vibrant, lifelike colours and supports a range of binding and finishing options for polished products.
Packaging Prototypes
Develop professional packaging prototypes using the device’s compatibility with heavy media up to 350 g/m². Create mock-ups for boxes, labels, or promotional packaging with precision and vibrant colour.
Variable Data Printing
Customise materials with variable data printing (VDP). Ideal for targeted campaigns like personalised invoices, coupons, or direct mail pieces, ensuring impactful, one-to-one communication for businesses of all sizes.
Educational and Training Materials
Produce high-quality training guides, workbooks, and syllabi with ease. The Ricoh Pro C5310s handles long runs efficiently while maintaining exceptional clarity and colour accuracy for educational institutions and corporate training programs.
Finisher SR5090
The Finisher SR5090 enhances productivity with multi-position stapling for up to 65 sheets and stacking capacities of 3,000 sheets (shift tray) and 250 sheets (proof tray). Optional features include punching, an output jogger, and a cooling fan.
Finisher SR5110
The Finisher SR5110 enhances productivity with a 4,500-sheet capacity and a 100-sheet multi-position stapler. Supporting media weights up to 360 gsm, it offers optional 2/4-hole punching and advanced finishing versatility for professional results.
Booklet Finisher SR5100
The Booklet Finisher SR5100 offers professional finishing capabilities, including multi-position stapling for up to 65 sheets and saddle-stitched booklets up to 20 sheets (80 pages). It handles media weights up to 360 gsm and stacks up to 2,000 sheets
Booklet Finisher SR5120
The Booklet Finisher SR5120 offers versatile finishing capabilities, including saddle-stitched booklets of up to 30 sheets (120 pages), multi-position stapling for up to 100 sheets, and dual tray stacking for up to 3,500 sheets. Optional 2/3-hole punching enhances its functionality.
Multi-Folding Unit FD5020
The Multi-Folding Unit FD5020 offers automated inline folding with six versatile patterns, including Z-Fold, Half-Fold, Gate-Fold, and Double Parallel Fold. Supporting paper sizes up to 330 × 487.7mm, it’s perfect for producing brochures, newsletters, and marketing materials.
GBC StreamPunch Ultra
The GBC StreamPunch Ultra is a versatile inline punch system supporting paper weights from 75–300 gsm and sizes from A5 to SRA3. It offers “Double Punch” capability, seamless tab punching, and maintains productivity without interruptions.

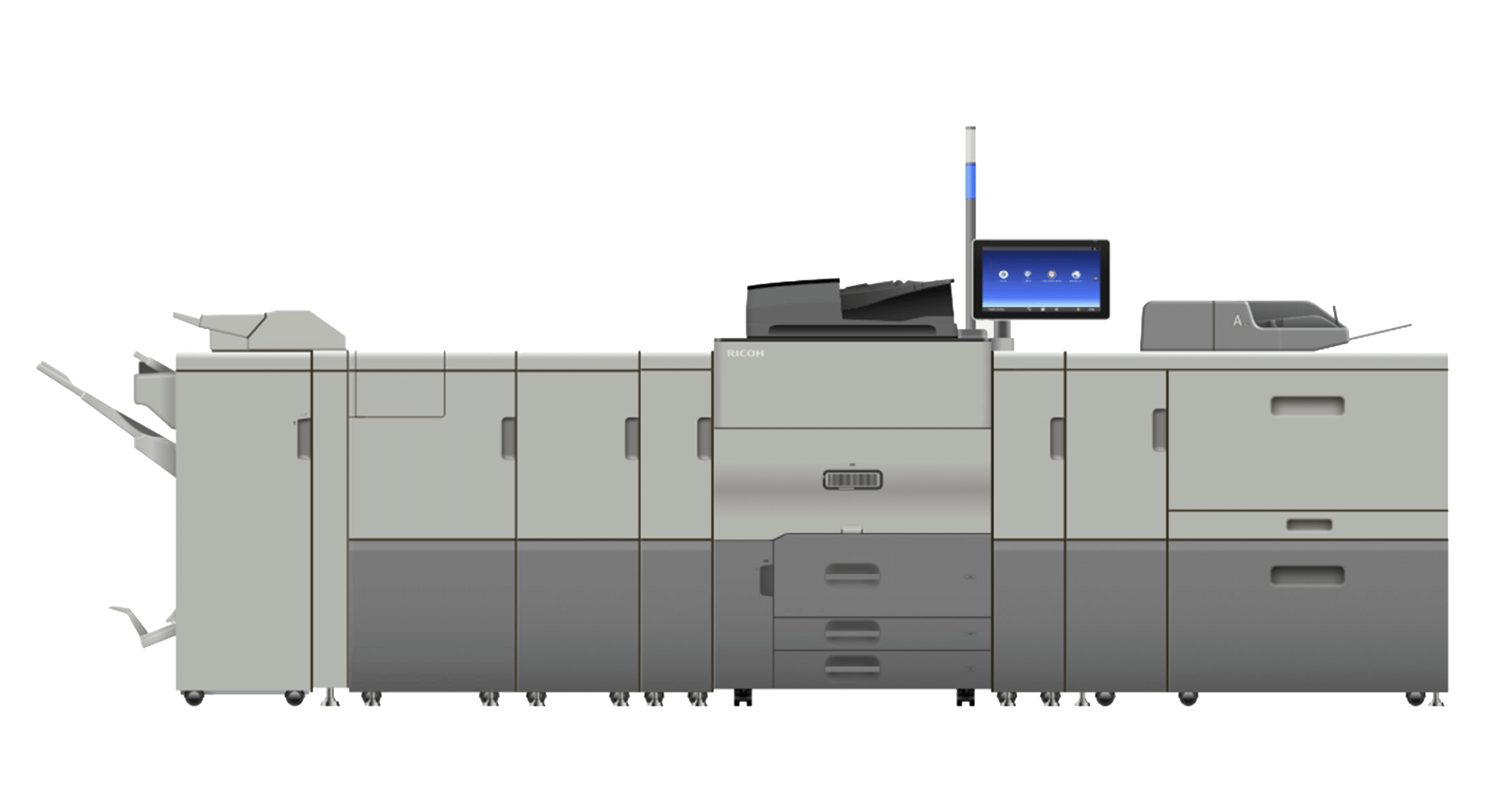

Optional device configuration
Booklet Finisher SR5100
Cover Imposer Tray CI5050
Multi-Folding Unit FD5020
Buffer Pass Unit Type S9
Decurl Unit DU5080
Pro C5310s
Bridge Unit BU5030
Vacuum Feed LCIT RT5120
Multi Bypass Tray BY5020
Features & Benefits
https://www.youtube.com/watch?v=vx-HlKGPiNs
Use cases
Redefine Quality with the Ricoh Pro 5310s Production Press.
Direct Mail
Streamline personalised direct mail campaigns with the Ricoh Pro C5310s. Its advanced colour accuracy, variable data printing (VDP) capabilities, and support for thick media ensure eye-catching postcards, brochures, and flyers for targeted marketing.
Short-Run Production
Perfect for short-run production needs, the Ricoh Pro C5310s delivers high-quality prints on demand. Whether it’s small batch booklets, event programs, or catalogues, businesses can reduce waste and maximise efficiency with ease.
Business Cards
Produce professional business cards with exceptional colour vibrancy and precision. The Ricoh Pro C5310s handles heavy stock effortlessly, allowing businesses to create durable, standout cards that leave lasting impressions on clients and partners.
