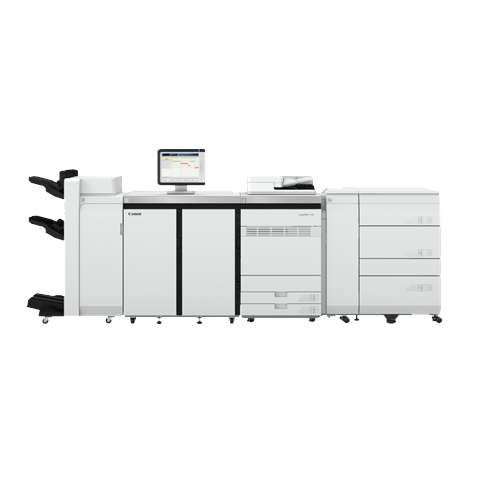

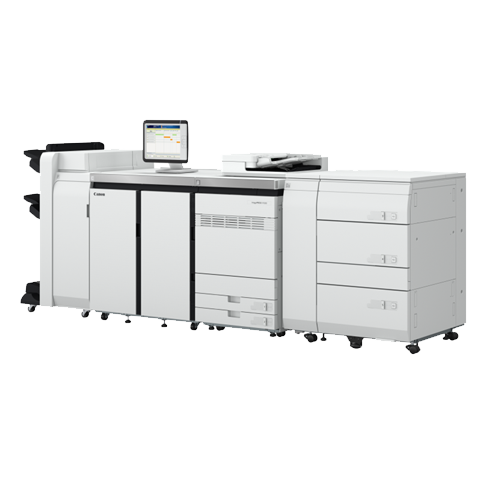

Canon imagePRESS V1000
Production Press
Maximise your capabilities with one dynamic engine for all your printing tasks
Experience unmatched printing excellence with the Canon imagePRESS V1000. Engineered for the demands of commercial printing, this powerhouse combines precision with productivity. Enjoy superior print quality up to 2400 x 2400 dpi, while its high-speed performance ensures efficient production. With support for various media types and sizes, advanced finishing options like stapling and booklet-making, and seamless workflow integration, the imagePRESS V1000 empowers you to elevate your print projects to new heights of creativity and professionalism.
100
Pages per minute
2400 x 2400
Dpi
52 – 400
Gsm
487.7 x 1300 mm
Paper size
| Print/Copy Process | This press applies Colour Laser Beam Printing technology with a print resolution of 2400 x 2400 dpi and a copy resolution of 600 x 600 dpi, delivering sharp, detailed prints. It accommodates various media types, from envelopes to luxury textured paper. Equipped with an in-line spectrophotometric sensor for automatic colour adjustment and the capability to replace toner and paper mid-print, it maximizes uptime. Additionally, it offers time and consumable cost savings through duplex printing and semi-automatic ADF scanning. |
|---|---|
| Output Speed | (B&W and Full-colour): 100 ppm. |
| Paper Capacity | Standard paper supply capacity of 1,100 sheets, with 2 cassettes that hold 550 sheets each. Maximum 11,100 sheets of paper capacity with options. Up to 400 gsm paper weight supported. |
| Paper Weight | Paper weight 52 – 400 g/m2. |
| Power Requirements | 220-240V/16Ax2(Main Station) 220-240V/16A(Fusing Station) |
| Dimensions W x D x H | Dimensions of the main engine 1,583 x 872 x 1,040 mm (62.32 x 34.33 x 40.94 inches). |
| Weight | Approx. 410kg (main unit). |
Paper Handling and Input Trays
High Capacity Stacker: Efficiently manages various paper sizes and weights, accommodating up to 6,000 sheets in its stack tray across two stacks. It also features a top tray for added flexibility, ensuring seamless high-volume stacking operations.
Document Insertion: Features two trays with a capacity of 200 sheets each, accommodating various paper types and sizes, from SRA3 to custom sizes. With a wide acceptable paper weight range and versatile compatibility, it ensures seamless document handling for diverse printing needs.
Paper Folding Unit: Offers versatile folding options including Z-Fold, Accordion Z-Fold, C-Fold, Half-Fold, and Double Parallel Fold, catering to various document needs. Compatible with a range of paper types and sizes, it ensures efficient folding for professional presentation. It’s a reliable addition to document processing workflows.
Perfect Binder: Provides precise booklet binding for a wide range of sizes, offering adjustable cutting ranges for top, bottom, and fore edges. It efficiently handles various paper weights and thicknesses for both body pages and covers, ensuring professional-quality results with ease.
Finishing and Binding Options
Staple Finisher: Handles diverse paper sizes and weights, staples up to 100 sheets, and offers reliable document organisation.
Booklet Finisher: Enhances document presentation with booklet stitching capabilities, supporting a range of paper sizes and weights for professional-grade output.
Puncher Unit: Offers versatility with selectable two or four hole punching options. It efficiently handles paper weights from 52 to 300 gsm and accommodates various paper sizes for precise hole punching in professional documents.
Booklet Trimmer: Provides precise trimming with adjustable widths ranging from 2 to 28mm. With a chip tray capacity of approximately 5,000 sheets, it facilitates uninterrupted workflow for high-volume production environments.
Two Knife Booklet Trimmer & Conveyor: Offers precise trimming with adjustable widths from 2 to 15mm. It efficiently handles paper weights from 52 to 300 gsm and trim thicknesses of up to 50 sheets, ensuring professional-grade booklet finishing.
Controllers
Fiery Print Controller imagePRESS server D3000: Delivers high-resolution printing at 1200 x 1200 dpi, supporting PS3 and PCL6 languages. With a Core i7-8700 processor, 16GB memory, and versatile compatibility with various OS and interfaces, it ensures efficient and seamless printing operations.
Prisma Sync Controller PRISMAsync for iPR V1000: Supports high-resolution printing at 1200x1200dpi and offers diverse page description languages like Postscript L3 and PDF 2.0. Equipped with an Intel Core i7-8700 processor and 16GB memory, it ensures efficient print operations and supports various operating systems and interfaces for seamless integration.
Enhance your Canon imagePRESS V1000 Production Press with these configuration options to meet your specific paper handling, finishing, and binding needs. Customise your printing capabilities to match your unique requirements and deliver exceptional results.
Packaging
The Canon imagePRESS V1000 is a versatile production press that can handle a variety of applications. Including packaging prototypes or short-run packaging materials, due to the machine’s accurate colour reproduction. As well as other print collateral:
Brochures
This device enables the creation of visually appealing brochures with vibrant colours and sharp images. Whether it’s a tri-fold, bi-fold, or multi-page brochure, the printer ensures consistent print quality across each piece, helping businesses effectively showcase their products or services.
Flyers
Produce informative and eye-catching flyers to advertise events, promotions, or special offers. High-speed capabilities and excellent colour reproduction allow for quick turnaround times without compromising quality, making it ideal for time-sensitive marketing campaigns.
Posters
The large-format printing capabilities make it suitable for producing attention-grabbing posters. Whether it’s for promotional campaigns, events, or informational purposes, the printer delivers high-resolution graphics and vibrant colours, ensuring posters stand out.
Catalogues:
Leverage the V1000 to create professional-looking catalogues that showcase their products or services in detail. With customisable layouts, sharp images, and consistent colour reproduction, the printer helps businesses present their offerings attractively and engage customers.
Direct Mail Pieces
Personalised direct mail pieces can be easily produced using this machine. The printer’s variable data printing capabilities allow for the customisation of content, images, and offers based on recipient demographics or preferences, maximising the effectiveness of direct mail campaigns.
Business Cards
Print high-quality business cards with customisable designs and finishes. Whether it’s a standard business card or a premium option with special coatings or embellishments, the printer ensures that each card reflects the professionalism and identity of the business.
Booklets
Whether it’s for educational materials, product manuals, or informational guides, the V1000 can produce professional-grade booklets. Consistently reproduce text, images, and graphics with sharp detail and clarity, enhancing the readability and appeal of their booklets.
Stationery
The device allows businesses to create branded stationery such as letterheads, envelopes, and notepads. Consistent colour matching and high-quality printing ensure that each item maintains the brand’s identity and professionalism, leaving a positive impression.
Perfect Binder
Perfect Binder-F1
This binder supports various binding styles, including perfect binding, which is ideal for creating paperback books, manuals, catalogues, and other bound documents. (Requires either the Staple Finisher-AG1 or Booklet Finisher-AG1). Supports booklet size: 203 x 138 mm to 297 x 216 mm| booklet thickness: up to 25mm.| Cutting range: top/bottom: 6.5 to 39.5mm at each edge, fore-edge: 6.5 to 49.5mm.| Body pages: Sizes – A4, SRA4, Free size (257 x 182 mm to 320 x 228.6 mm). Paper weight and number of sheets: thin paper (52-63 gsm): 30-200 sheets, plain paper (64-80 gsm): 10-200 sheets, plain paper (81-90 gsm): 10-150 sheets, thick paper (91-105 gsm): 10-150 sheets, thick paper (106-163 gsm): up to 10 sheets as insertion sheet or up to 25mm as thickness of bunch.| Cover: number of sheets – 1 sheet. Sizes: A3, SRA3, Free size (257 x 364 mm to 330.2 x 487.7mm). Paper weight: 90 to 300 gsm. Tray capacity: approx.127mm or approx.1,000 sheets of paper in total.| Weight approx. 308kg. Power: 220-240V, 50/60Hz, 3.0A
Paper Handling
Document Insertion Unit-R1
This automates the process of inserting documents, such as reply cards, subscription forms, or promotional materials, into finished booklets or other printed materials. Allowing for efficient and accurate document insertion without the need for manual intervention. (Requires either the Staple Finisher-AG1 or Booklet Finisher-AG1). Number of trays: 2| Tray capacity: upper tray: 200 Sheets (80 gsm)| lower tray: 200 Sheets (80 gsm). Suitable for paper types: thin, plain, recycled, colour, thick, pre-punched, letterhead, bond, coated, tab, tracing, and textured. Supports paper sizes: SRA3, A3, A4, A4R, B4, B5, B5R, and custom size (182.0 × 182.0 mm to 330.2 × 487.7 mm). Supports paper weight between 52 to 300 gsm. Weight: Approx. 61 kg. Power Source: 100-240V/50/60Hz 1.0A.
DFD Adapter-B1
Facilitates direct DFD connectivity with the Finisher Bridge, supporting a wide range of paper weights (52-400 gsm for plain paper, 128-400 gsm for coated paper) and paper sizes from 182 x 182 mm to 330.2 x 487.7 mm. Optional accessories include the Finisher Bridge Height Kit 1002-A1 for adjusting height. It measures approximately 300 mm x 745 mm x 1040 mm and weighs around 60 kg, with power requirements of 90–264V, 47–63Hz, requiring more than 10A.
Stackers
High Capacity Stacker-J1
Capable of stacking a large volume of printed documents, allowing users to accommodate high-volume printing jobs without the need for frequent unloading. Supports paper sizes between A5R to SRA3 to Free Size (140 x 182 mm to 330.2 x 1,300 mm).| Supports paper weight between 52 to 350 gsm.| Output Capacity – stack tray: 6,000 sheets (80 gsm) in two stacks of 3,000 sheets each, top tray: 200 sheets up to 487.7mm (100 sheets up to 762mm; 10 sheets up to 1300mm).| Weight: approx. 120 kg. Power: 90-264V, 47-63Hz, 10A.
Booklet Makers
Booklet Finisher-AF1
Supports booklet stitch paper sizes from A3 to Free size (210 x 279.4 mm to 330.2 x 487.7 mm) and paper weights ranging from 52 to 300 gsm. It has a staple capacity of 25 sheets (52-80 gsm, including the cover), with dimensions of 800 mm x 792 mm x 1,239 mm (or 1,136 mm x 792 mm x 1,239 mm with the Long Sheet Tray) and weighing approximately 180 kg. The power requirement is 220-240V, 50-60Hz, 8A. Additionally, it can accommodate non-staple folded bunches of up to 5 sheets (60 to 105 gsm) with a power source of 100-240V, 50/60Hz, 2.8A, and dimensions of 896 × 765 × 1,040 mm when the extension tray is extended, weighing around 110 kg.
Cutters/ Trimmers/ Folders
Booklet Trimmer-G1
It has advanced trimming technology to deliver precise and professional-quality trimming for booklets and other multi-page documents. It ensures clean, straight edges on each page, enhancing the overall appearance and readability of the finished product. (Requires Booklet Finisher-AG1). Trim Width: 2-28mm. Trim Thickness: up to 50 sheets (including cover). Supports paper weight between 52 to 300 gsm. Chip tray capacity: approx. 5,000 sheets (trim width 20mm, A4, 80 gsm). Weight: Approx. 178 kg (including conveyor and output tray).
Two-Knife Booklet Trimmer-B1 and Two-Knife Booklet Trimmer Conveyor-B1
Dual-knife trimming technology enables the trimming of booklets with precision and accuracy. This trimmer can trim both the head and foot edges of the booklet in a single pass. The Conveyor provides a direct connection between the trimmer and subsequent finishing equipment, automatically transferring the trimmed booklets for further processing. (Requires Booklet Trimmer-G1). Trim Width: 2-15 mm. Trim Thickness: up to 50 sheets (including cover). Supports paper weight between 52 to 300 gsm (trim 60 to 300 gsm). Chip tray capacity: approx. 1,500 sheets (trim width 15mm, A4, 80 gsm). Weight: approx. 145 kg. Power: 220-240V, 60Hz, 2.3A.
Paper Folding Unit-K1
Automates the folding process, allowing users to fold printed materials. (Requires either the Staple Finisher-AG1 or Booklet Finisher-AG1). Supported folding type: Z-Fold, Accordion Z-Fold, C-Fold, Half-Fold, Double Parallel Fold. Suitable for paper types: thin, plain, recycled, colour, and bond. Supports paper sizes: A3, A4R, B4 (Z-Fold)| A4R (Accordion Z-Fold, C-Fold, Half-Fold, Double Parallel Fold).| Supports paper weight: 52 to 105 gsm (Z-Fold, Accordion Z-Fold, C-Fold, Half-Fold)| 52 to 90 gsm (Double Parallel Fold). Weight: Approx. 71 kg.
Stapling/ Hole Punching
Staple Finisher-AF1
The Staple Finisher-AF1 offers versatile tray capacities for different paper sizes and weights, with the upper tray (A) accommodating up to 1,000 sheets for standard sizes (52-300 gsm) and 100 sheets for long sheets (52-350 gsm). The lower tray (B) can hold varying capacities depending on paper size and weight, ranging from 2,000 to 4,000 sheets. It supports a wide paper weight range from 52 to 350 gsm and offers staple positions for corner and double stapling. The staple capacity is up to 100 sheets for A4 size and 50 sheets for A3/A4R sizes. With dimensions of 800 mm x 792 mm x 1,239 mm (or 1,136 mm x 792 mm x 1,239 mm with the Long Sheet Tray) and weighing approximately 130 kg, it requires a power supply of 220-240V, 50-60Hz, 8A.
Multi-Function Professional Puncher-C1
Offers a wide range of punching options to accommodate various document finishing requirements. (Requires either the Staple Finisher-AG1 or Booklet Finisher-AG1). It supports multiple punch patterns, including standard hole punching, as well as custom patterns tailored to specific binding methods such as comb binding, coil binding, and ring binding. The paper weight it supports for punching is between 75-300 gsm (plain paper), and 118-300 gsm (coated paper). The paper sizes it supports for punching are SRA3, A3, SRA4, SRA4R, A4, A4R.| The paper weight it supports for creasing is between 157-300 gsm (plain paper/ coated paper). The paper sizes it supports for creasing are SRA3, A3, A4R, 13”x19”, 13”x19.2”. Weight: Approx. 102kg. Power: 230V, 50Hz, 1.9A.

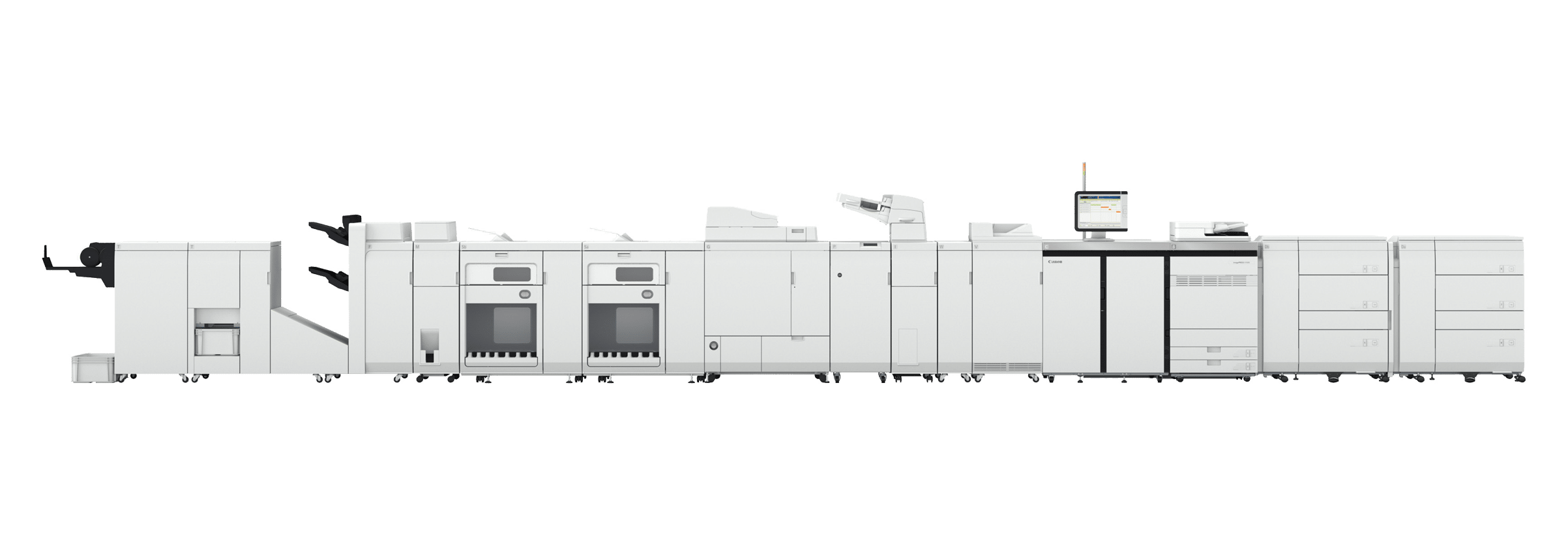

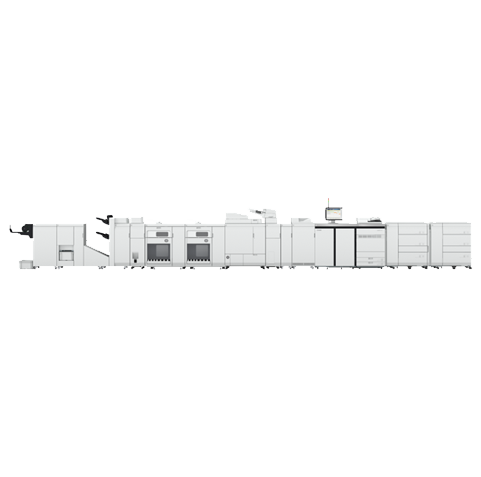

Optional device configuration
Staple Finisher-AF1
Flat Control Panel-A1
Duplex Colour Image Reader Unit-P1
Multi-drawer Paper Deck-E1
High Capacity Stacker-J1
Booklet Trimmer-G1
Perfect Binder-F1
Document Insertion Unit-R1
Sensing Unit-B1
Operating Panel-A6
Features & Benefits
https://www.youtube.com/watch?v=hvw9zSUhPUc
Use cases
Redefine Quality with the Canon imagePRESS V1000 Production Press.
Marketing Material
Its high-resolution printing capabilities and versatile media handling enable you to deliver visually stunning collateral, such as brochures and flyers, that effectively communicates the clients’ brand messages.
Book Publishing
Its exceptional print quality, ability to handle various paper types and sizes, enables publishers to produce professional-grade books efficiently, meeting stringent deadlines and exceeding reader expectations.
Photography Portfolio
Superior colour accuracy, resolution, and versatility ensure that photographs are reproduced with exceptional detail and fidelity, allowing photographers to create customised portfolios that highlight their creativity.
